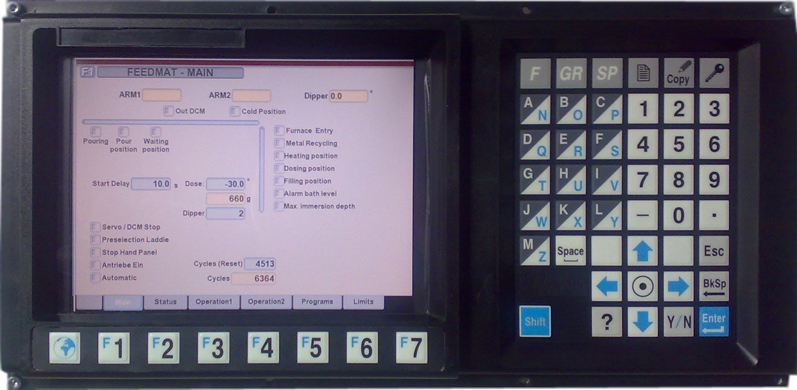

Embedded Control Unit ECU537A

Embedded control unit
  • 500MHz high performance Blackfin processor
  • 64MB RAM / 16MB NOR Flash
  • Hardware Watchdog Timer
  • Realtime clock
  • 10“ LCD TFT color display
  • Industrial High Reability Keyboard
  • Wide Range Power Supply DC 6-36V
  • Power consumption: <5W

The embedded control unit is based on 500MHz Analog Devices Blackfin processor. The system provides fast performance even for complex GUI applications, various communication interfaces - RS232, RS485, CAN and PPI. The board is extremely reliable using entirely industrial components. The device can be used as a flexible programming unit, featuring graphic easy to use interface, rocket solid keyboard, and briliant true color TFT display. SD/MMC card slot allows user to store programs or application data and provides an easy option for software upgrade. The Ethernet connector and the TCP/IP stack allows unit to connect to an existing network infrastructure or Internet for remote diagnostic, data logging or web-based control (depending on software application).


  • 10/100Mbps Fast Ethernet port: 1x
  • CAN interface: 1x
  • RS232 (keyboard): 1x
  • RS232/RS485 (jumper selectable): 1x
  • SD/MMC memory card storage


uCLinux Operating System

  • CAN/CANOPEN support
  • RTOS support libraries available
  • FLTK graphic interface
  • Standard C/C++ development tools (GCC)
  • Power:

    DC 24V industrial or (6-36V DC).

    Power consumption:


    Standards compliance:

    • EN55022 class B - Emission
    • EN55024 - Immunity
    • EN60950-1 - Safety

    Operating temperature range:

    Industrial: -20°C to +50°C

    Datasheet (PDF): ECU537A.pdf.

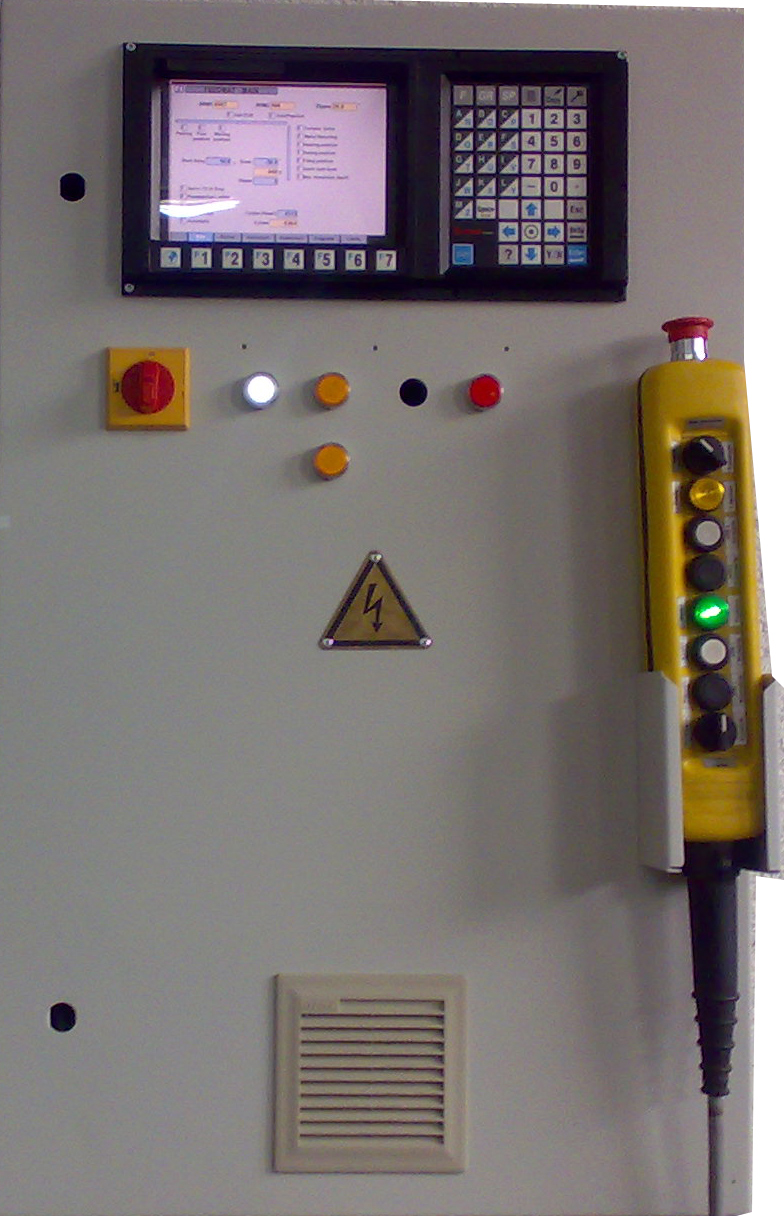

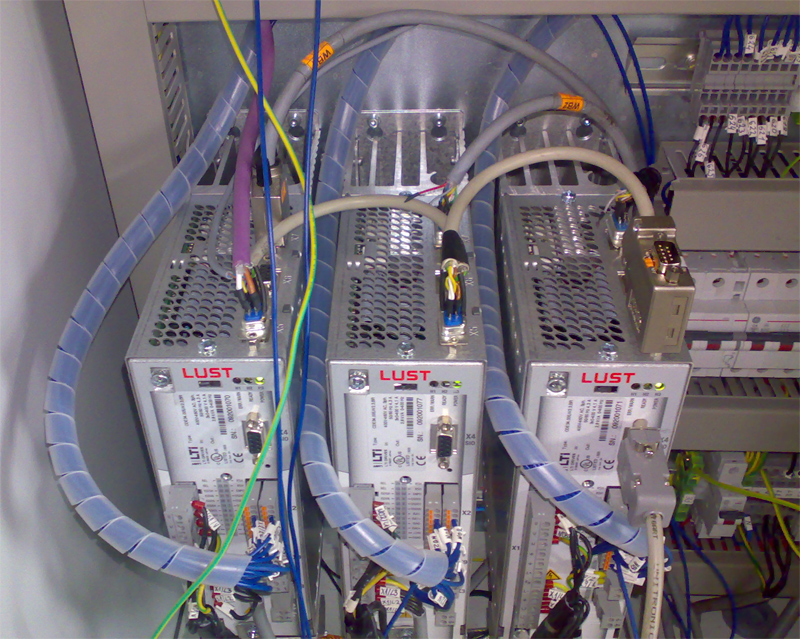

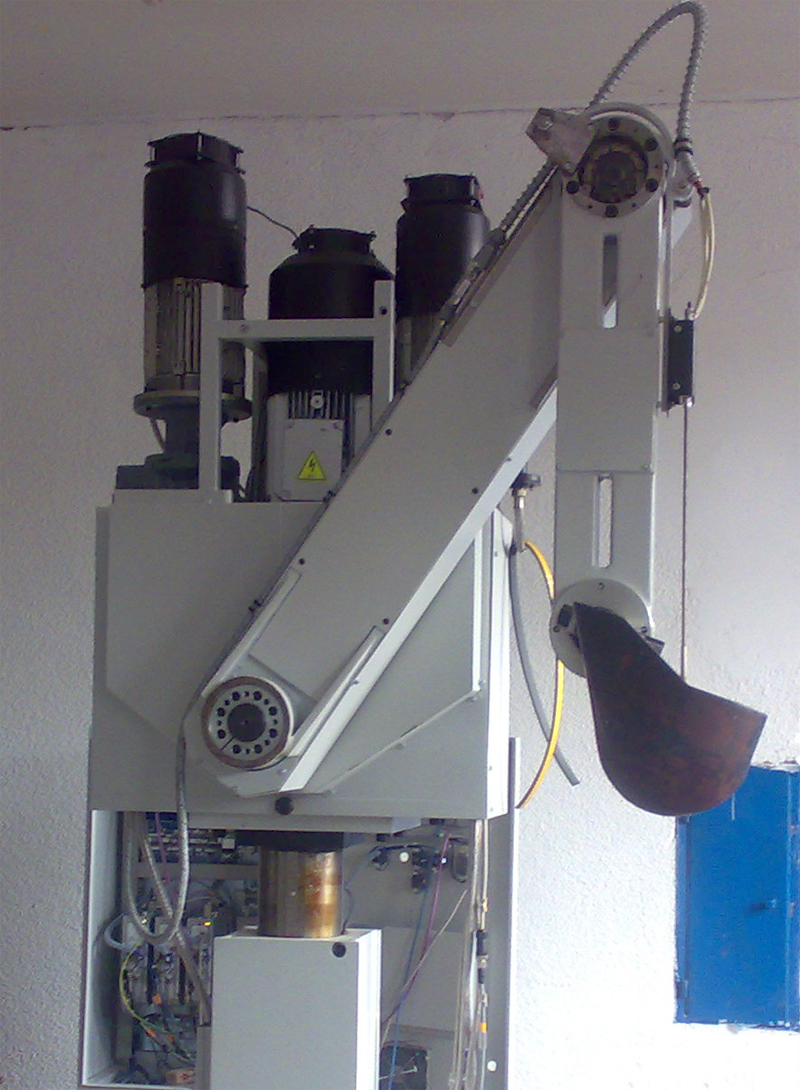

    Call Support Applications Industrial robot control Control pannel CANOPEN Motor controllers
